Description
Product Description
FDS - Stainless Steel Insulated Fire-Rated Flush Access Panel For Walls & Ceilings
Achieve a high-tech look with the FDS fire-rated access panel in #304 stainless steel. Features 1in trim to cover wall opening imperfections and universal turn ring and key lock.
30in x 36in, FDS - Stainless Steel Insulated Fire-Rated Flush Access Panel For Walls & Ceilings
(762mm) x (914.4mm)
Product Features
- Frame: 16 gauge stainless steel with 1in wall flange. Welded on masonry anchor.
- Door: 2in thick, insulated 20 gauge stainless steel with continuous hinge.
- Finish: 304 stainless steel - #4 satin finish.

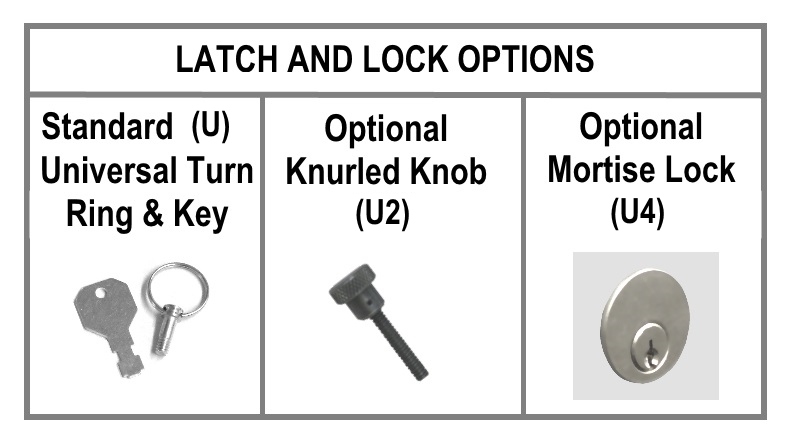

- Latch: Universal turn ring and key lock (U)
Fire-Rating of FD, FDS:
- Wall Installation: 1-1/2 hour UL "B" label in a 2 hour fire barrier. File # R13067-1. Maximum size 48in x 48in
- Ceiling Installation: Warnock Hersey listed for ceiling installations with 3 hour non-combustible rating or 1 hour combustible rating. File # WHI-495-PSH-0163. Maximum size 24in x 36in
- CSFM:This product has been approved by the California State Fire Marshall. (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM Listing No 3330-1223
Product Resources
- Catalog Page
- Submittal 1-Hour
- Submittal 2-3-Hour
- Submittal 2-Hour
- Cross Reference
- Specifications
- Warranty
- Installation - Wall
- Installation - Ceiling
- Maintenance
- HPD
- BIM rfa
- BIM txt
- CAD Drawing
Other Features
-
