UF-5500 - 18in x 18in, Universal Flush Access Door

See more by Acudor

$45.69
Hover Image to Zoom

UF-5500 - 18in x 18in, Universal Flush Access Door

See more by Acudor

$45.69
SKU:
AD-UF-5500-1818
Availability:
Ships in 1-2 Days
Weight:
7.30 LBS
Width:
18.00 (in)
Height:
18.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-UF-5500 - Title PicAD-UF-5500 - Title

Product Description

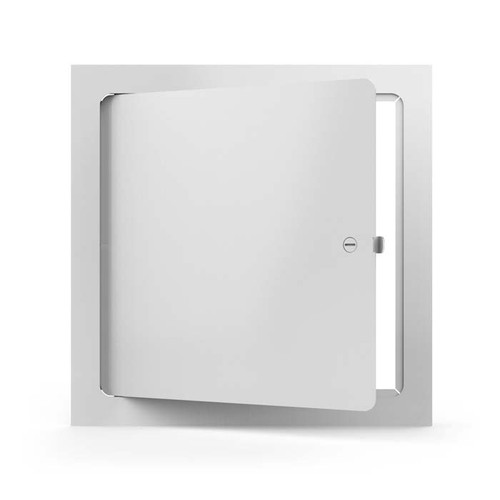

UF-5500 Universal Flush Access Door

Installation in Drywall, Plaster, Masonry, Tile or any flush surface

18in x 18in, Universal Flush Access Door For Drywall, Plaster, Masonry, Tile Or Any Flush Surface
(457.2mm) x (457.2mm)

Product Features

  • Door panel has rounded safety corners providing an architecturally pleasing appearance
  • One piece trim flange will not rack, sag or distortion
  • Unique continuous concealed hinge will not bind

UF-5000 Access Door Specifications:

  • Material: 12” x 12” and smaller are 20 gauge galvanized steel door & frame.
    Over 15” x 15” and larger are 18 gauge galvanized steel door & frame
  • Door: Flush To Frame- Drawn flanged door panel with rounded corners
  • Mounting Frame: One piece outer flange welded to mounting frame
  • Hinge: Continuous, concealed
  • Latch: Stainless Steel screwdriver operated cam latch
  • Finish: >White baked on polyester powder coat

Technical Documentation:

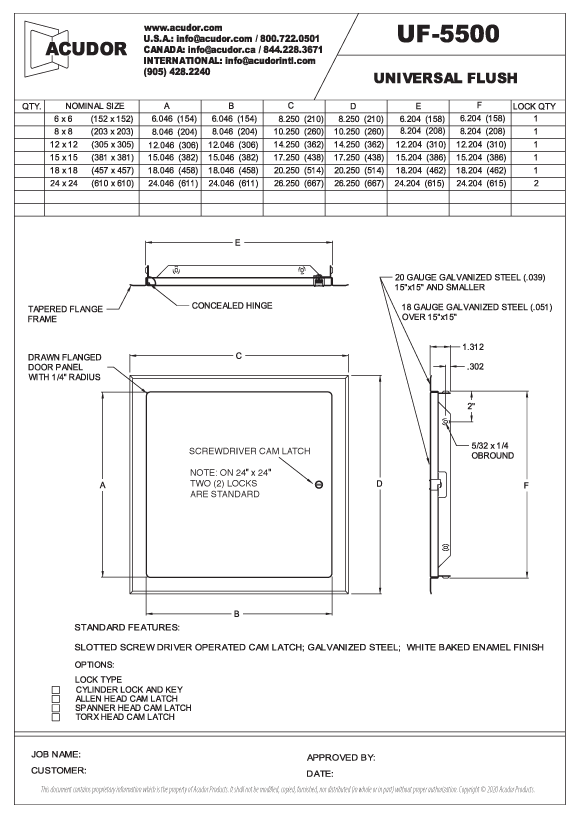

UF-5500 - Size Chart

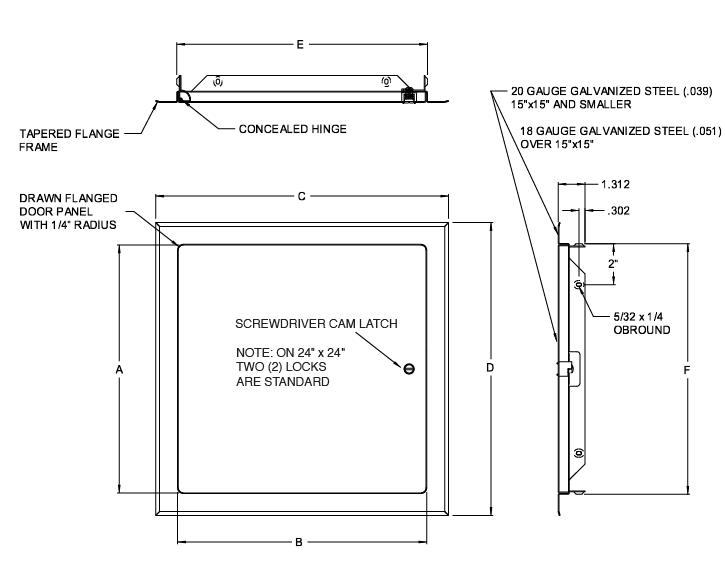

UF-5500 - Schematic
