RD-5090 - 20in x 17in, Access Door for Round Duct

See more by Acudor

$66.16
Hover Image to Zoom

RD-5090 - 20in x 17in, Access Door for Round Duct

See more by Acudor

$66.16
SKU:
AD-RD-5090-2017
Availability:
Ships in 1-2 Days
Weight:
7.20 LBS
Width:
20.00 (in)
Height:
17.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-RD-5090- Title PicAD-RD-5090- Title Total

RD-5090 - Access Door for Round Duct

Economical access to round ducts
20in x 17in, Access Door for Round Duct
(508mm) x (431.8mm)

Product Features

  • Pull and catch lock system
  • Gasketing on the door assures a tight seal without obstruction in the air system

RD-5090 Duct Access Door Specifications:

  • Door / Door Frame: 16 gauge galvanized steel
  • Gasketing: 1/8” thick by 1” wide closed cell neoprene
  • Hinge: Continuous, concealed
  • Standard Latch: Plated steel pull and catch
  • Finish: Mill / Aluminum

Technical Documentation:



RD-5090 - Size Chart

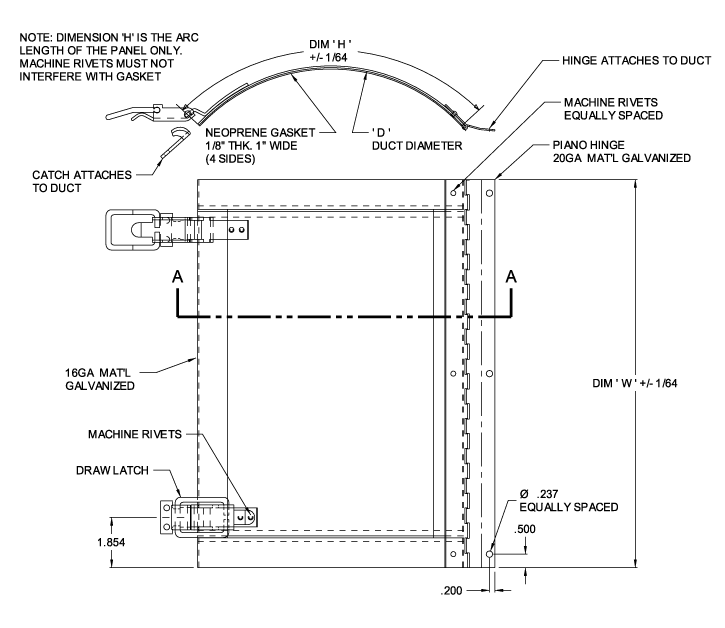

RD-5090 - Schematic
