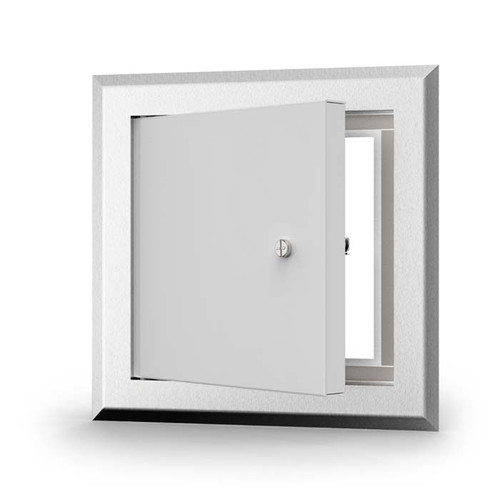

LT-4000 - 30in x 30in, Lightweight Aluminum Access Door For Drywall Walls and Ceilings

See more by Acudor

$283.15
Hover Image to Zoom

LT-4000 - 30in x 30in, Lightweight Aluminum Access Door For Drywall Walls and Ceilings

See more by Acudor

$283.15
SKU:
AD-LT-4000-3030
Availability:
Ships in 1-2 Days
Weight:
11.70 LBS
Width:
30.00 (in)
Height:
30.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-LT-4000- Title PicAD-LT-4000- Title Total

Product Description
LT-4000

Lightweight aluminum access door for walls and ceilings

30in x 30in, Lightweight Aluminum Access Door For Drywall Walls and Ceilings
(762mm) x (762mm)

Product Features

  • Mitered aluminum frame provides an architecturally pleasing appearance
  • Aluminum door panel is lined with 3/4in polystyrene insulation
  • All aluminum construction is ideal for exterior applications, and specific interior applications where corrosion or moisture are a concern
  • Gasketing between the door and frame

LT-4000 Access Door Specifications:

  • Door / Door Frame: Aluminum: .064 door and .080 frame, Flush to edge of frame, 1-5/16” mitered aluminum extrusion flange with 1-1/2” deep mounting frame
  • Hinge: Doors with width 24” or less to have concealed pin hinge. Doors with width over 24”to have continuous aluminum piano hinge with exposed knuckle, set to open to 180 degrees.
  • Insulation: 3/4” Type 3 Expanded Polystyrene (EPS) Foil Lined Insulation, with a 3.18 R Value.
  • Gasket: 1/8” x 3/8” closed cell neoprene gasketing
  • Standard Latch: Screwdriver operated cam latch
  • Optional Latches/Locks: cylinder lock & key
  • Finish: Mill finish

Technical Documentation:

LT-4000 - Lightweight Aluminum Access Panel - Size Chart

LT-4000 - Lightweight Aluminum Access Panel - Schematic
