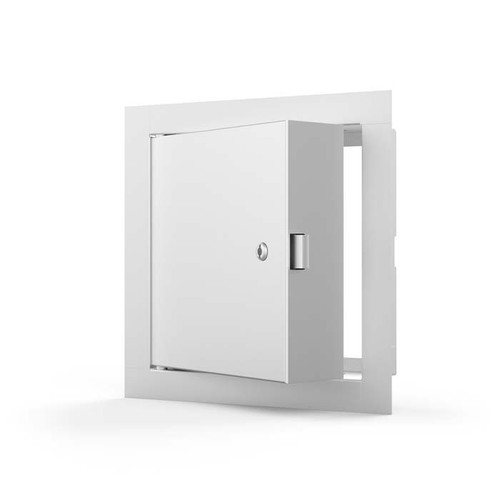

FW-5050-UP - 24in x 24in, Fire Rated Insulated Access Door, Upswing Door for Ceilings

See more by Acudor

$806.46
Hover Image to Zoom

FW-5050-UP - 24in x 24in, Fire Rated Insulated Access Door, Upswing Door for Ceilings

See more by Acudor

$806.46
SKU:
AD-FW-5050-UP-2424
Availability:
Ships in 1-2 Days
Weight:
0.20 LBS
Width:
24.00 (in)
Height:
24.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-FW-5050-UP - Title PicAD-FW-5050-UP - Title

Product Description
FW-5050-UP Fire Rated Insulated Access Door, Upswing Door for Ceilings

An insulated, fire rated access door for inward opening in ceilings

24in x 24in, Fire Rated Insulated Access Door, Upswing Door for Ceilings For Drywall
(609.6mm) x (609.6mm)

FW-5050-UP Product Features

  • For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24‚Äù x 36‚Äù)
  • Insulated Door Panel
  • Self-closing
  • Self latching
  • Inside latch release

FW-5050-UP Access Door Specifications:

  • Material: Steel or Stainless Steel
  • Mounting Frame: 16 gauge mounting frame, with trim 1" wide
  • Hinge: Concealed with coil spring for dampening
  • Fire Rating: UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. Max size: 24 x 36. For Ceilings: Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling.
  • Standard Latch: L Handle - operable from both sides
  • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Stainless Steel: Type 304 - #4 satin polish



Technical Documentation:

FW-5050-UP - Size Chart

FW-5050-UP - Schematic
