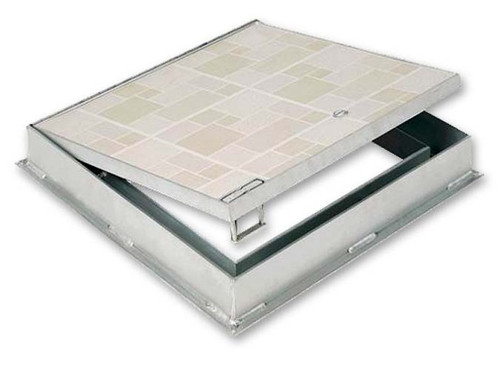

FT-8050 - 24in x 24in, Floor Door, Recessed 1in for Ceramic Tile/Concrete

See more by Acudor

$3,297.33
Hover Image to Zoom

FT-8050 - 24in x 24in, Floor Door, Recessed 1in for Ceramic Tile/Concrete

See more by Acudor

$3,297.33
SKU:
AD-FT-8050-2424
Availability:
Ships in 1-2 Days
Weight:
70.00 LBS
Width:
24.00 (in)
Height:
24.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-FT-8050 - Title PicAD-FT-8050 - Title

Product Description
FT-8050 - Floor Door, Recessed for Tile Concrete

Designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material

24in x 24in, Floor Door, Recessed 1in for Ceramic Tile/Concrete
(609.6mm) x (609.6mm)

Product Features

  • Recessed 1" to accommodate ceramic tile/concrete flooring.
  • Door panel is equipped with a flush aluminum drop handle and an automatic hold open arm

FT-8050 Floor Door Specifications:

  • Material: Aluminum door and frame; stainless steel hinges and hardware
  • Door: 1/4" smooth aluminum plate reinforced for live load of 300 lb/sq. ft. Extruded edging is welded to door panel, providing a 1" recess
  • Frame: Channel frame fabricated from aluminum extrusion with 1 1/2" drainage coupling and integral 1" anchor flange
  • Hinge: Stainless steel continuous piano hinge
  • Opening Device: Automatic Hold-Open Arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. Stainless Steel Open Compression Springs provide lift assist. Available with electrical actuators, operated by wall mounted push button switch, and remote control
  • Standard Latch: Stainless steel slam lock with a fixed inside handle, removable outside handle, and removable threaded plug
  • Finish: Mill finish with bituminous coating applied to exterior of frame

Technical Documentation:

FT-8050 - Size Chart

FT-8050 - Schematic
