FA-300-R - 60in x 60in, Retrofit Floor Door, 300 lb./sqft loading

See more by Acudor

Call 800-513-5976 for pricing
Hover Image to Zoom

FA-300-R - 60in x 60in, Retrofit Floor Door, 300 lb./sqft loading

See more by Acudor

Call 800-513-5976 for pricing
SKU:
AD-FA-300-R-6060
Availability:
Ships in 1-2 Days
Weight:
177.00 LBS
Width:
60.00 (in)
Height:
60.00 (in)
Depth:
6.00 (in)
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Add to Wishlist

Description

AD-RHG - Title PicAD-RHG - Title

Product Description
FA-300-R - Retrofit Floor Door, 300 lbs sqft

Designed for interior and exterior applications where watertightness is not required.

60in x 60in, Retrofit Floor Door, 300 lb./sqft loading
(1524mm) x (1524mm)

Product Features

    • Angle frame construction designed to be bolted into an existing opening
    • Diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm

FA-300-R Floor Door Specifications:

    • Material: Aluminum door and frame; stainless steel hinges and hardware
    • Door: 1/4" aluminum diamond plate reinforced for live load of 300 pounds/sq ft.v
    • Frame: Angle frame fabricated from aluminum extrusion
    • Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
    • Opening Device: Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. When required, stainless steel compression springs can be provided to add lift assistance. Available with electrical actuators, operated by wall mounted push button switch, and remote control
    • Standard Latch: Flush aluminum drop handle with staple for padlock. Also available recessed padlock provision
    • Finish: Mill finish, with optional bituminous coating on exterior of frame


Technical Documentation:

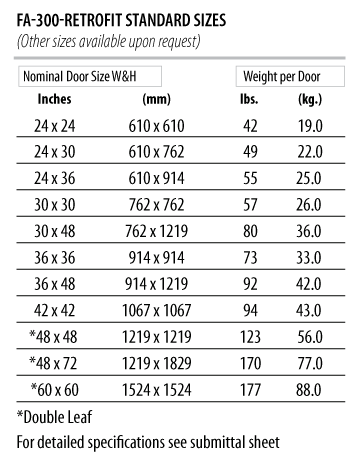

FA-300-R - Size Chart

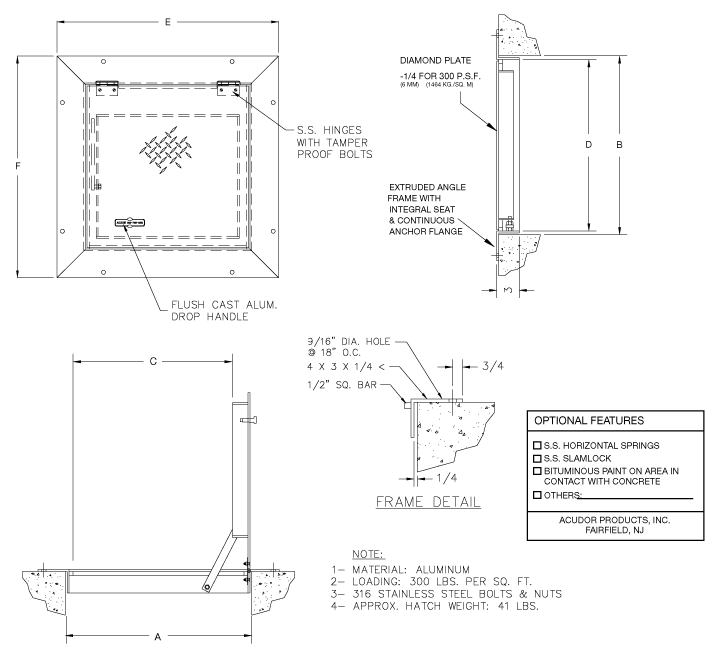

FA-300-R - Schematic
