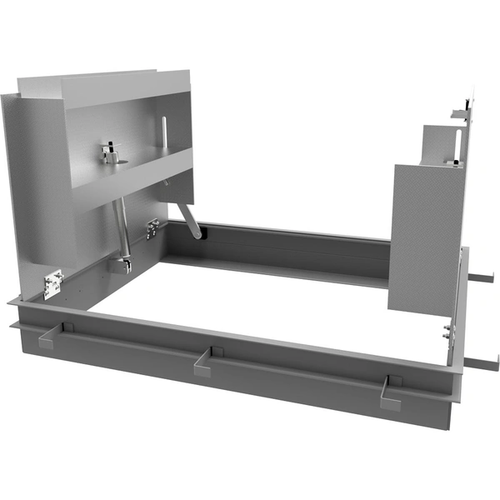

The H20 Drainable Floor Door is designed for infrequent, off street traffic in exterior or high moisture areas when liquid flow into the door is a concern. The frame is constructed with a gutter channel for water runoff into a drainage system.
- H20 Load or HS20
- Diamond Tread Plate cover
- Designed for exterior use
- Drainable frame with gutter — integral 1 inch anchor flange, EPDM gasket, and 1-1/2 inch drain coupling
- Cast-In installation
- Available in single or double leaf configurations
- Material options: Aluminum (1/4 inch), Steel (3/16 inch), Stainless Steel Type 304 or 316 (3/16 inch)
- Enclosed coil spring — Type 17-7 Stainless Steel
- Heavy-duty Type 316 Stainless Steel hinge
- Type 316 Stainless Steel automatic hold open arm locks cover in open position
- Slam latch Type 316 Stainless Steel with inside lever handle; includes removable threaded plug and key
- Options: Padlock Hasps, Locks, Finishes, Safety Grates, Safety Nets, Safety Rails, Skirting
- 5-year warranty
Features
- H20 Load or HS20 load rating
- Diamond tread plate cover
- Exterior use design
- Drainable gutter frame with integral 1 inch anchor flange, EPDM gasket, and 1-1/2 inch drain coupling
- Cast-In installation
- Single or double leaf configurations
- Aluminum (1/4 inch), Steel (3/16 inch), or Stainless Steel Type 304/316 (3/16 inch) material options
- Enclosed coil spring – Type 17-7 Stainless Steel
- Heavy-duty Type 316 Stainless Steel hinge
- Type 316 Stainless Steel automatic hold open arm
- Slam latch Type 316 Stainless Steel with inside lever handle, removable threaded plug and key
- 5-year warranty
Documentation
- Floor Door Parts Shop Drawing
- H20 Single Leaf Shop Drawing (BFDDHA SFL)
- H20 Shop Drawing CAD (BFDDHA 36x36 SFL)
- H20 Drainable Floor Door Data Sheet
- Floor Door 3-Part Specification (WORD)
- Installation, Operation & Maintenance Guide
- Floor Door Warranty
- H20 Single Leaf w/Safety Grate Shop Drawing (BFDDHA SFL-SGT)
- H20 Double Leaf Shop Drawing (BFDDHA DFL)
- H20 Double Leaf w/Safety Grate Shop Drawing (BFDDHA DFL-SGT)
- HS20 Single Leaf Shop Drawing (BFDDSA SFL)
- HS20 Single Leaf w/Safety Grate Shop Drawing (BFDDSA SFL-SGT)
- HS20 Double Leaf Shop Drawing (BFDDSA DFL)
- HS20 Double Leaf w/Safety Grate Shop Drawing (BFDDSA DFL-SGT)
-
