Overview

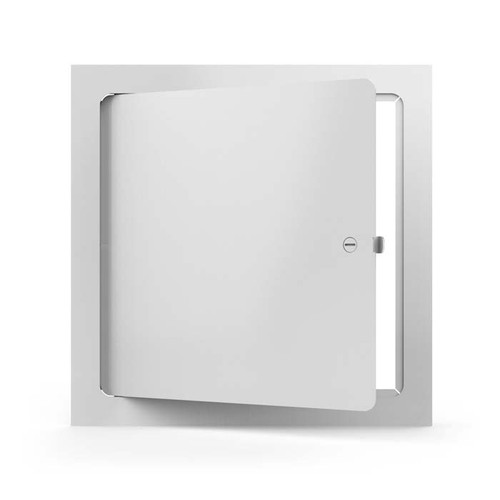

The Acudor BP-2002 is an economical, attractive universal flush access door for walls and ceilings, well suited to apartments, condominiums and office buildings. Its beveled 16 gauge steel door panel overlaps the frame, which has a 1/2in outside flange and a 1-1/2in deep mounting frame. The door hangs on a concealed hinge and closes with a stainless steel screwdriver-operated cam latch; cylinder lock and key, allen head and spanner head cam latches are optional. This door is 24in x 24in.

Product Description
BP-2002 Universal Flush Access Door

Unique beveled door panel overlaps the frame

Economical and attractive access door for walls & ceilings ideally suited for apartments, condominiums and office buildings

24in x 24in, Universal Flush Access Door For Drywall
(609.6mm) x (609.6mm)

Product Features

• Concealed hinge

BP-2002 Access Door Specifications:

• Material: 16 gauge steel door and frame
• Door Frame: 1/2“ wide outside flange - 1 1/2” deep mounting frame
• Hinge: Concealed Hinge
• Latch: Stainless steel screwdriver operated cam latch
• Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

Technical Documentation:

• Product Information
• Submittal
• 3D View, Plan, Elev, & Schedule
• BIM
• Archicad
