AW-APS - 30 x 30, Aluminum Floor Door

$2,468.00
No reviews yet Add your review

AW-APS - 30 x 30, Aluminum Floor Door

Brand Name:
SKU:
AD-AWAPS-3030
Availability:
Y
Weight:
0.00 LBS
Shipping:
Calculated at Checkout

A FPS title picA FPS title total

Application

    • Designed for interior and exterior applications where floodtight or gastight is required.

Product Features

    • Angle frame construction with anchors welded around the frame for casting into concrete.
    • Diamond plate door panel is reinforced for a live load of 1560 pounds/sqft. (capable of holding up to 25 ft. head of water).
    • Door panel overlaps frame, compressing the gasket providing a floodtight/gastight fit.
    • EPDM gasket and floodtight cam locks ensure door will not leak from standing water.

AW-APS Floor Door Specifications:

    • Material: Aluminum door & frame ; Type 316 Stainless steel hinges & hardware
    • Door: 1/4" aluminum diamond plate reinforced for live load of 1560 pounds/per sq. ft. (capable of holding up to 25 ft. head of water)
    • Frame: 3/8" aluminum with 3/16” x 1 1/2” strap anchors welded around the frame for casting into concrete
    • Hinge: Type 316 stainless steel butt hinges with tamper proof stainless steel bolts and nuts
    • Gasket: 9/16” O.D. x 1/8” I.D. EPDM gasket
    • Opening Device: Automatic hold open arm with red vinyl grip allows door to open to 90 degrees, locking door in open position and allowing for easy control when closing door panel. Optional Lift Assists Available
    • Standard Latch: Type 316 stainless steel floodtight cam locks and flush floodtight handle
    • Finish: Mill finish with is standard, Bituminous coating optional on exterior frame

Documentation:

A FPS chart

A FPS submittal...

AW-APS Chart

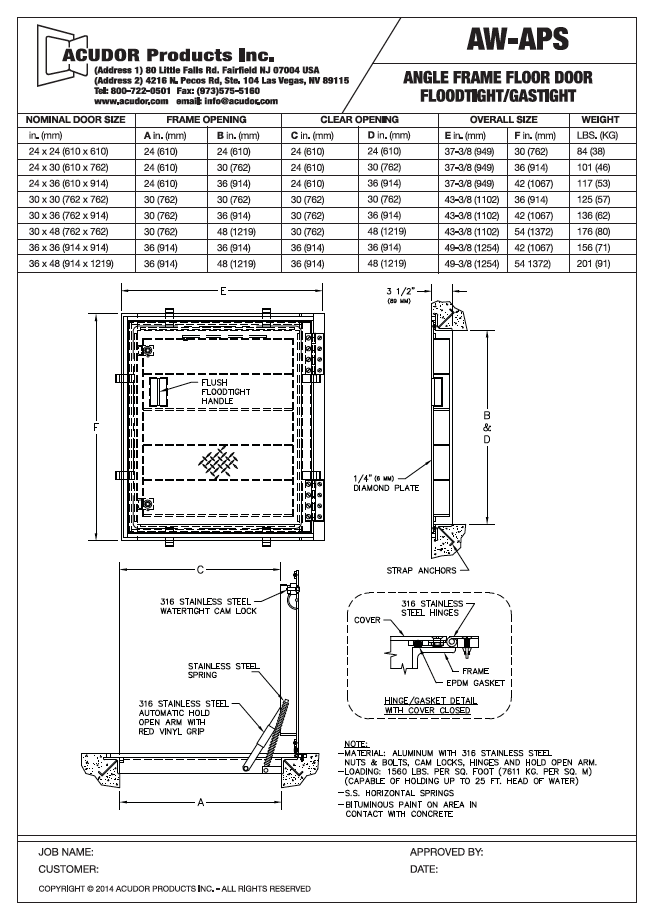

AW-APS Submittal
