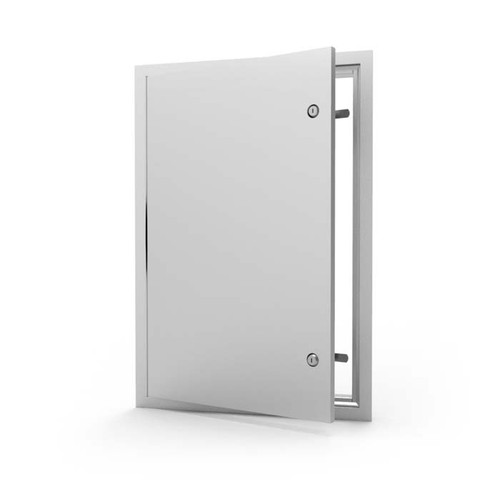

ACF-2064 - 12in x 12in, Steel Flush Acoustical Access Door

See more by Acudor

$298.76
Hover Image to Zoom

ACF-2064 - 12in x 12in, Steel Flush Acoustical Access Door

See more by Acudor

$298.76
SKU:
AD-ACF-2064-1212
Availability:
Ships in 1-2 Days
Weight:
14.30 LBS
Width:
12.00 (in)
Height:
12.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-ACF-2064- - TitleAD-ACF-2064- - Title Total

Product Description
ACF-2064 - Specialty Access Door, Steel Flush Acoustical Access Door

This flush access door is ideal for use on Acoustical walls and ceilings where maintaining STC Rating (Sound Transmission Class) and OITC Rating (Outdoor-Indoor Transmission Class) is required

12in x 12in, Steel Flush Acoustical Access Door
(304.8mm) x (304.8mm)

Product Features

  • Zinc coated steel provides superior corrosion resistance
  • Type 304 Stainless steel with #4 satin polish also available
  • Tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Rating 64 and OITC Rating 54

ACF-2064 Access Door Specifications:

  • Material: 18 Gauge Satin Coat Steel
  • Door: 18 Gauge, encapsulated design with 2” thick acoustical mineral liner and 0.11” thick mineral filled vinyl barrier
  • Frame: 18 Gauge, press bent for strength and rigidity, with 1” wide trim flanges and 1” thick acoustical mineral liner
  • Gasket: Silicone perimeter seal gasket
  • Hinge: Continuous exposed stainless steel piano hinge
  • Standard Lock: Screw driver operated Compression Latch
  • Acoustic Rating: This door has been tested and evaluated to ASTM
  • Finish: 5 stage iron phosphate preparation with prime coat of white baked-on enamel

Technical Documentation:

ACF-2064 - - Size Chart

ACF-2064 - - Schematic
