Overview

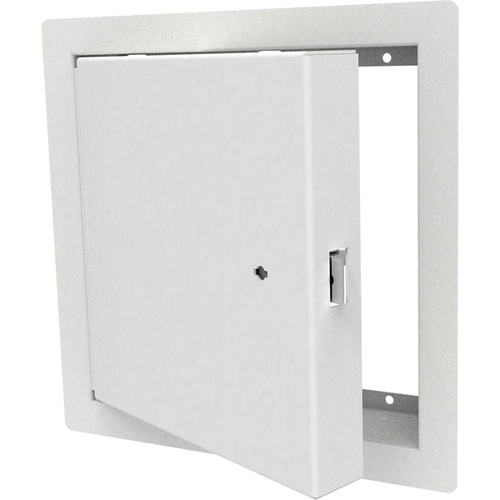

The Babcock-Davis BSW is an insulated, fire-rated security access door built from heavy-duty steel to prevent unwanted access through openings in fire-rated walls. It carries a UL listed "B" label for 1-1/2 hours and is self-closing, with a 14 gauge steel outer door, 20 gauge inner door, 16 gauge frame and 2in fire-rated mineral fiber insulation, finished in white powder primer. It is for wall installation only; custom sizes are available, and it carries a 1-year warranty. This door is 22in x 22in.
The insulated Fire-Rated Security Access Door is constructed of heavy-duty materials to prevent unwanted access through openings in fire-rated vertical surfaces.
- Fire-Rated: UL listed "B" label for 1-1/2 hours
- Self-Closing Door
- Wall Installation Only
- Custom Sizing Available
- Outer Door: 14 gauge steel
- Inner Door: 20 gauge steel
- Frame: 16 gauge steel
- Insulation: 2 inch Fire-Rated Mineral Fiber
- Finish: White Powder Primer Coat
- Warranty: 1 year
Features
- Fire-Rated (UL listed "B" label for 1-1/2 hours)
- Self-Closing Door
- Wall Installation Only
- Custom Sizing Available
- 14 gauge steel outer door / 20 gauge steel inner door
- 16 gauge steel frame
- 2 inch Fire-Rated Mineral Fiber insulation
- White Powder Primer Coat finish
- Available flanges: Exposed 1", Drywall Bead, Plaster Bead
- Optional Galvannealed, Gasketing, Masonry Anchors, Stainless Steel Type 304
Documentation
-
Description
Overview
The Babcock-Davis BSW is an insulated, fire-rated security access door built from heavy-duty steel to prevent unwanted access through openings in fire-rated walls. It carries a UL listed "B" label for 1-1/2 hours and is self-closing, with a 14 gauge steel outer door, 20 gauge inner door, 16 gauge frame and 2in fire-rated mineral fiber insulation, finished in white powder primer. It is for wall installation only; custom sizes are available, and it carries a 1-year warranty. This door is 22in x 22in.
The insulated Fire-Rated Security Access Door is constructed of heavy-duty materials to prevent unwanted access through openings in fire-rated vertical surfaces.
- Fire-Rated: UL listed "B" label for 1-1/2 hours
- Self-Closing Door
- Wall Installation Only
- Custom Sizing Available
- Outer Door: 14 gauge steel
- Inner Door: 20 gauge steel
- Frame: 16 gauge steel
- Insulation: 2 inch Fire-Rated Mineral Fiber
- Finish: White Powder Primer Coat
- Warranty: 1 year
Features
- Fire-Rated (UL listed "B" label for 1-1/2 hours)
- Self-Closing Door
- Wall Installation Only
- Custom Sizing Available
- 14 gauge steel outer door / 20 gauge steel inner door
- 16 gauge steel frame
- 2 inch Fire-Rated Mineral Fiber insulation
- White Powder Primer Coat finish
- Available flanges: Exposed 1", Drywall Bead, Plaster Bead
- Optional Galvannealed, Gasketing, Masonry Anchors, Stainless Steel Type 304
