Overview
An access door gives service access to plumbing, valves, wiring and equipment behind walls and ceilings while keeping the opening closed and finished. This Babcock-Davis BMWP door is 10in x 10in. Construction, per Babcock-Davis — door: 12-gauge steel construction for maximum durability; hinge: Concealed Continuous Piano hinge. Finish: White Powder Primer Coat. Sizes: Minimum 8" × 8" up to Maximum 36" × 48". Warranty: 1 year from date of shipment.

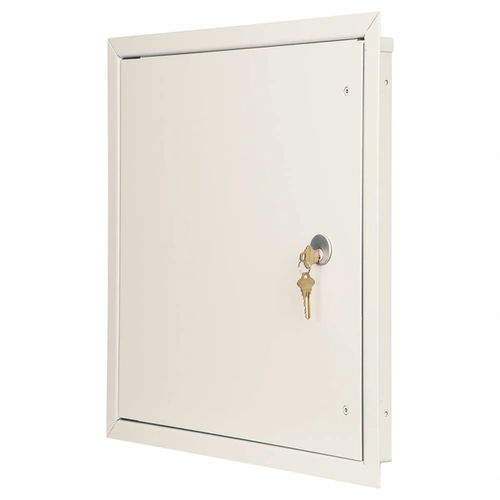

This Medium Security Access Door is manufactured with heavy-duty materials to prevent unwanted access for installation in any wall or ceiling surface.
- Door & Frame: 12-gauge steel construction for maximum durability
- Flange Options: 1-inch Exposed (BMT), Drywall Bead (BMW), or Plaster Bead (BMP)
- Hinge: Concealed Continuous Piano hinge
- Finish: White Powder Primer Coat
- Size Range: Minimum 8" × 8" up to Maximum 36" × 48"
- Installation: Suitable for wall or ceiling applications
- Latch Options: Mortise Lock Prep, Pinned Allen Head Cam Latch(es), Pinned Allen Head Security Screw(s), or Detention Lock
- Material Options: Galvannealed, Stainless Steel Type 304
- Accessory Options: Masonry Anchors available
- Warranty: 1 year from date of shipment
Features
- Secure Door with heavy-duty 12-gauge steel door and frame
- Solid concealed continuous piano hinge
- Custom sizing available (Min: 8"×8", Max: 36"×48")
- Multiple flange options: Exposed, Drywall Bead, Plaster Bead
- Multiple latch/lock options including Mortise Lock, Cam Latch, Security Screws, and Detention Lock
- Material options: Galvannealed or Stainless Steel Type 304
- Wall or ceiling installation
- White Powder Primer Coat finish
- 1-year warranty
