MS-7000 - 36in x 36in, Medium Security Access Door

See more by Acudor

$602.76
Hover Image to Zoom

MS-7000 - 36in x 36in, Medium Security Access Door

See more by Acudor

$602.76
SKU:
AD-MS-7000-3636
Availability:
Ships in 1-2 Days
Weight:
60.50 LBS
Width:
36.00 (in)
Height:
36.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-MS-7000- Title PicAD-MS-7000- Title Total

Product Description

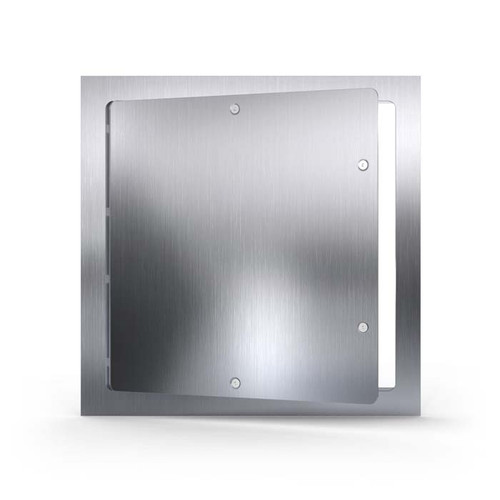

MS-7000 - Medium Security Access Door

For use in medium security jails, prisons, psychiatric institutions, etc.

Medium duty security access door

36in x 36in, Medium Security Access Door
(914.4mm) x (914.4mm)

Product Features

  • 12 Gauge door and frame
  • A one piece trim flange and continuous concealed hinge
  • Door panel features rounded safety corners

MS-7000 Access Door Specifications:

  • Material: Steel or Stainless Steel
  • Door / Mounting Frame: 12 gauge door and mounting frame, Flush to frame with rounded corners and reinforced panel, One piece outer flange welded to mounting frame
  • Hinge: Continuous, concealed
  • Standard Latch: Tamper resistant allen head cam latch with security pin
  • Optional Latches/Locks: Spanner head cam latch, cylinder lock & key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
  • Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baking enamel. Stainless Steel: Type 304 #4 satin polish.

Technical Documentation:

MS-7000 - Size Chart

MS-7000 - Schematic
