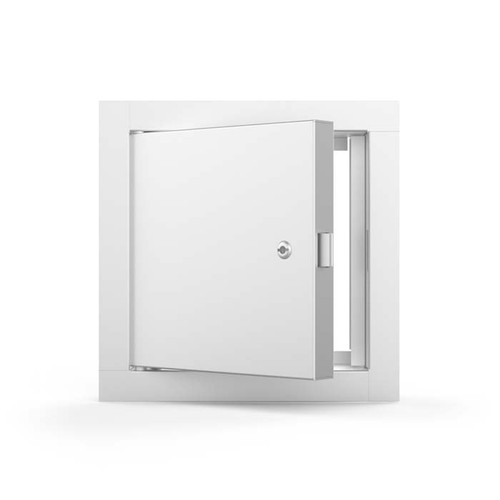

FB-5060 - 30in x 30in, Fire Rated Uninsulated Access Panel, for Walls

See more by Acudor

$289.36
Hover Image to Zoom

FB-5060 - 30in x 30in, Fire Rated Uninsulated Access Panel, for Walls

See more by Acudor

$289.36
SKU:
AD-FB-5060-3030
Availability:
Ships in 1-2 Days
Weight:
0.33 LBS
Width:
30.00 (in)
Height:
30.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-FB-5060 - Title PicAD-FB-5060 - Title

Product Description
FB-5060 Fire Rated Uninsulated Access Door, for Walls

For wall applications.

Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor
30in x 30in, Fire Rated Uninsulated Access Panel, for Walls
(762mm) x (762mm)

Product Features

  • Concealed hinge
  • Self-latching / Self-closing
  • Self-closing & self-latching door mechanism
  • Inside latch release

FB-5060 Access Door Specifications:

  • Material:Steel or Stainless Steel
  • Door:16 gauge
  • Mounting Frame:16 gauge. Flush to frame with reinforced edges, flange 1" wide
  • Hinge:Concealed
  • Fire Rating (Walls):UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. (optional) Max sizes of 36" x 48" and 24" x 79"
  • Standard Latch:Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
  • Finish:5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel. Stainless Steel: Type 304 - #4 satin polish.

Technical Documentation:

FB-5060 Fire Rated Uninsulated Access Door, for Walls - Size Chart

FB-5060 Fire Rated Uninsulated Access Door, for Walls - Schematic
