AT-5020 - 18in x 18in, Concealed Recessed Access Door

See more by Acudor

$107.29
Hover Image to Zoom

AT-5020 - 18in x 18in, Concealed Recessed Access Door

See more by Acudor

$107.29
SKU:
AD-AT-5020-1818
Availability:
Ships in 1-2 Days
Weight:
5.90 LBS
Width:
18.00 (in)
Height:
18.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-AT-5020 - Title PicAD-AT-5020 - Title

Product Description
AT-5020 Concealed Recessed Access Door

The Acudor AT-5020 is a steel, recessed access door. The AT-5020 is for use in walls or ceilings when it is required to conceal the door panel.

18in x 18in, Concealed Recessed Access Door For Drywall
(457.2mm) x (457.2mm)

AT-5020 Product Features

  • Door panel is recessed 1"
  • Concealed hinge, pivoting rod type
  • Screwdriver operated cam latch, Flush to surface
  • 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel finish

AT-5020 Access Door Specifications:

  • Material: Steel
  • Door: 16 gauge, Recessed 1"
  • Mounting Frame: 14 gauge
  • Hinge: Concealed, pivoting rod type, for wall applications over 24”x24” we supply a concealed pin hinge
  • Standard Latch: Flush to surface, Slotted Screwdriver Cam Latch
  • Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch
  • Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel

Technical Documentation:

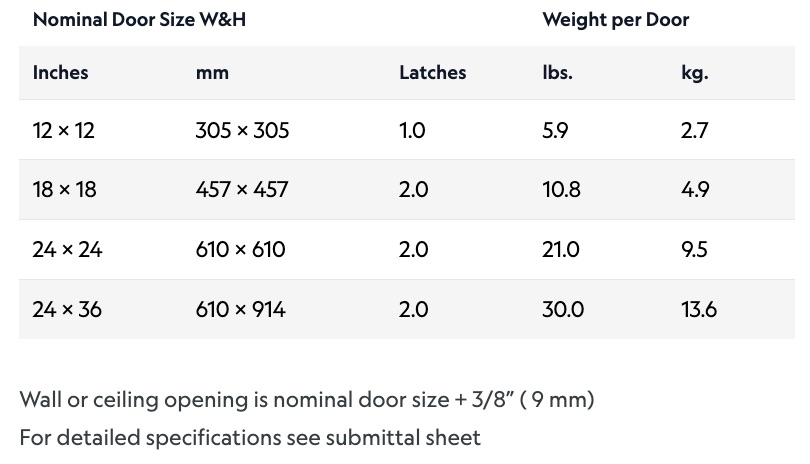

AT-5020 - Size Chart

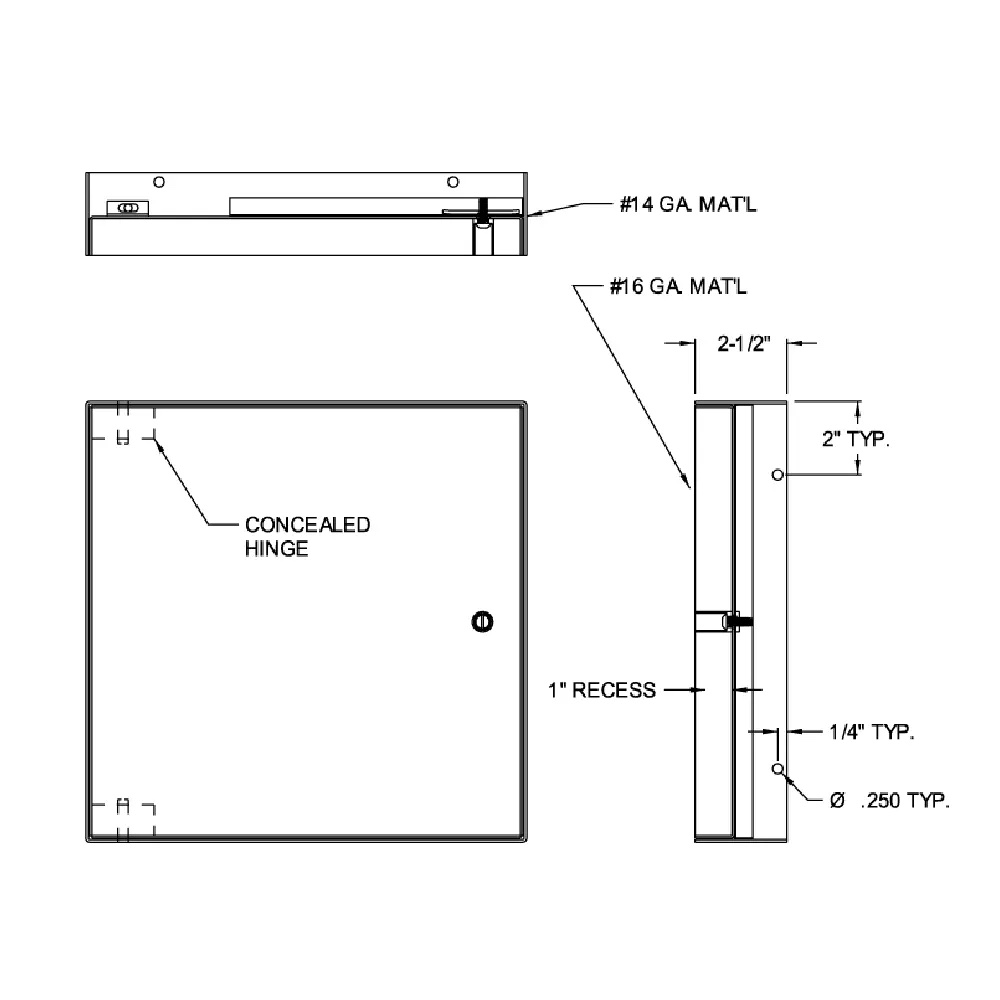

AT-5020 - Schematic
