Overview

The J&L TMS is a multi-purpose flush access panel in Type 304 stainless steel with a #4 satin finish, for openings in wallboard, plaster or masonry. Its 1in trim flange covers the edges of the opening for a clean finished look. The 16 gauge stainless door swings 90 degrees on a concealed continuous stainless hinge and closes with a flush screwdriver-operated cam latch, on an 18 gauge stainless frame. Stainless suits places that see moisture and frequent cleaning, such as restrooms, kitchens and mechanical rooms. This panel is 22in x 22in; sizes run from 6in x 6in to 48in x 48in, with custom sizes in 1/4in increments.

Product Description
TMS - Multi Purpose Flush Stainless Steel Access Panel

Select the stainless steel finish TMS for wallboard, plaster or masonry openings. The attractive 1in trim covers the edges of the opening, providing a clean look for any installation.

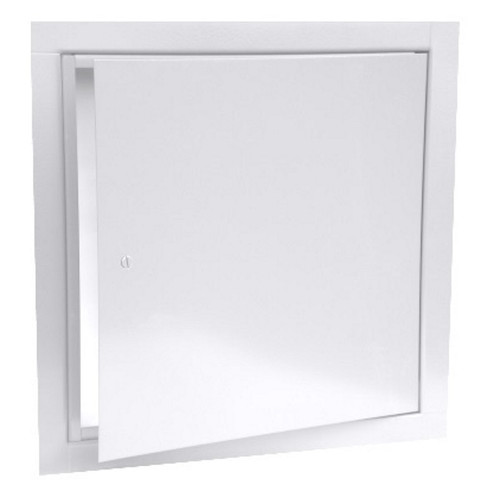

22in x 22in, TMS - Multi Purpose Flush Stainless Steel Access Panel
(558.8mm) x (558.8mm)

Product Features

• Frame: 18 gauge stainless steel with a 1in wall flange.
• Door: 16 gauge stainless steel access door mounted with a 90 degree continuous, stainless steel concealed hinge.
• Finish: 304 stainless steel - #4 satin finish
• Lock: Flush screwdriver-operated steel cam (C).
• Sizes: Minimum 6in x 6in, maximum 48in x 48in.
• Custom Sizes: Available in1/4in Increments Only, For Example 16-1/4in, 16-1/2in or 16-3/4.

Product Resources

• Catalog Page
• Cross Reference
• Specifications
• Warranty
• Installation
• Maintenance
• HPD
• BIM rfa
• BIM txt
• CAD Drawing

Other Features

• Locks & Latches
• Door Options
